valhalla 算路引擎



基于openstreetmap数据的算路引擎,括路径规划、等时线计算、高程采样、地图匹配和旅行优化

核心特性

Tiled Hierarchical Data Structure: Allows for small memory footprint on constrained devices, enables offline routing, and provides a means for regional extracts and partial updates. 支持在资源受限设备上使用较小内存,便于离线路由,并支持区域提取与局部更新。

Dynamic Runtime Costing: Edge and vertex costing via a plugin architecture, allowing for customized routing behavior and alternate route generation.通过插件架构实现边和节点的代价评估,支持自定义路由行为和备选路径生成。

Plugin-based Narrative Generation: Customizable turn-by-turn instruction generation that can be tailored to administrative areas or target locales.可定制的逐路口导航指令生成逻辑,支持按行政区或目标地区进行本地化。

Multi-modal Routing: Supports mixing auto, pedestrian, bike, and public transportation in the same route, along with time-constrained routing. 多模式路由:支持将汽车、步行、自行车和公共交通混合于同一路径中,同时支持时间约束的路径规划

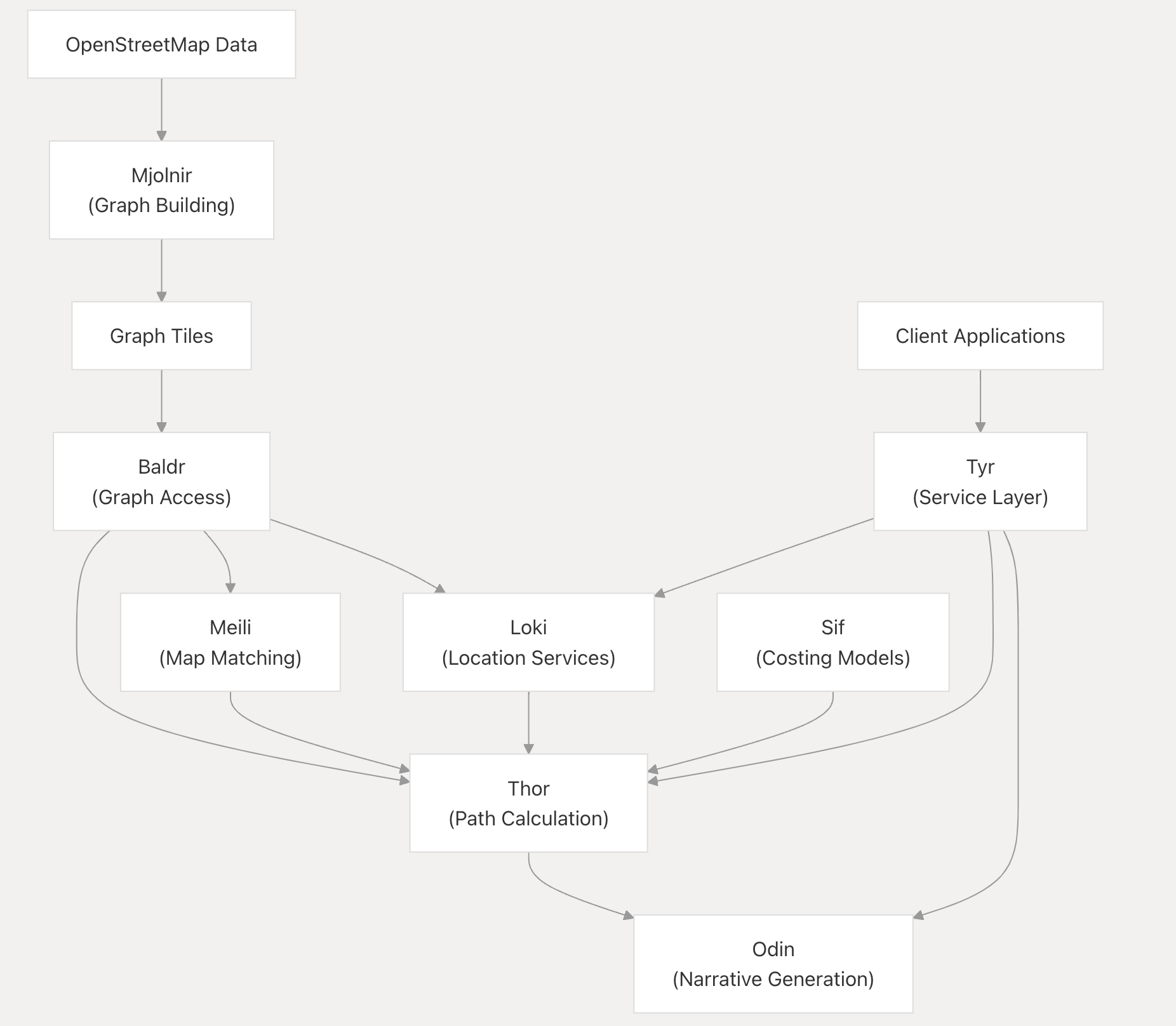

核心组件 Core Components

alt text

  • Midgard: Basic geographic and geometric algorithms 地理/几何数据结构

  • Baldr: Base data structures for accessing and caching tiled route data 路由数据结构/算法

  • Sif: 边缘/转换的成本计算
  • Skadi: 数字高程模型使用

  • Tyr: API 接口层

  • Loki: - 位置服务, 处理请求中的位置信息,将其与图形边缘关联 mkdocs.yml:90
  • Thor - 路径计算,现路由算法,计算路径 mkdocs.yml:112-115
  • Odin - 叙述生成, 生成路线导航指令和叙述 mkdocs.yml:92

  • Meili - 地图匹配 mkdocs.yml:96-103

  • Mjolnir - 路由图/瓦片生成 mkdocs.yml:104-111
